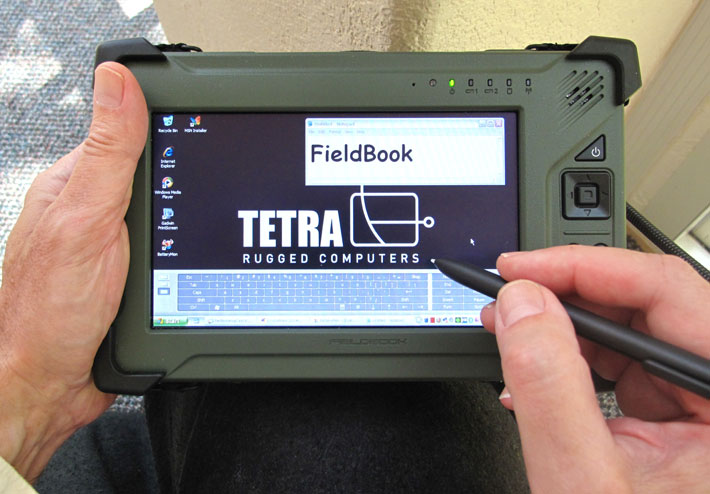

TETRA IP54 Rugged UMPC Fieldbook
The TETRA IP54 Rugged UMPC Fieldbook is the latest of the next generation of rugged compact handheld
computers. It runs full Windows XP or 7 on a 1024 x 600 widescreen sunlight readable display. It’s twin Lithium Polymer battery packs are hot swappable for continuous operation. All ports are sealed or have rain and dust proof doors. TETRA IP54 Rugged UMPC Fieldbook is MIL-STD-810 and IP54 certified and has been drop tested to 1.2m (48inches). Equip with GPS, UXGA camera, optional 802.11 b/g/n, RFID scanner or barcode reader. The IP54 Rugged UPMC Fieldbook is perfect for field maintenance or logistics applications.
Features TETRA IP54 Rugged UMPC Fieldbook
• Collect Data with Barcode or RFID
• Transfer data in real-time
• Take geo-tagged photographs
• Receive dispatch orders on the road
• Map your networked assets or update their condition
• Send email
• Find your way out of nowhere
– Intel® Atom™ Z530 1.6GHz CPU, 2GB RAM
– XP Tablet/XP PRO embedded/Windows 7
– IP54, sealed I/O ports, -20°C operating
– 7” 1024×600 Sunlight Readable TFT LCD
– Fully rugged MIL-STD-810G, drop resistant from 1.2m (4 ft.)
– Twin hot-swappable lithium polymer battery packs
– Wireless connectivity, integrated GPS
Specifications TETRA IP54 Rugged UMPC Fieldbook
| PHYSICAL FEATURES | |
| Designation : | Fieldbook |
| Chassis construction : | Magnesium alloy |
| Dimension : |
22.5 (8.9”) W x 14.5 (5.7”) H x 4.2 cm (1.6”)D 23.5 (9.2”) W x 15.4 (5.9”) H x 5 cm (1.9”)D (including Bumpers) |
| Weight : | 1.3 KG (2.8lb) with two battery packs |
 |
|
|
SYSTEM FUNCTIONALITY |
|
| Processor : | Intel® Atom™ Z530 1.6 GHz |
| FSB : | 533 Hz |
| RAM memory : | 2 GB DDRII 533 |
| Video controler : | Intel® Graphics Media Accelerator 500 (Intel® GMA 500) with 3D graphics |
| Audio : | 1x speaker 1.5W support Intel® HD Audio |
| Microphone : | Sensitive microphone array x2 integrated for voice recording and teleconferencing |
| Hard Disk Drive : | Rugged SATA 120 GB 1.8" with G-sensor |
| option : | Rugged SSD – 16 / 32 / 64 GB |
| Camera : | 2M-UXGA (1600 x 1200) auto-focus camera |
| Operating System : |
Windows XP Tablet Windows Vista Windows 7 |
|
|
|
|
DISPLAY |
|
| Description : | 7" TFT LCD WVGA SLR Display (1024 x 600) sunlight readable 300 NITS with touch screen panel, LED backlighting, support for stealth mode, Build-in ambient light sensor to adjust LCD brightness |
| Integrated G-sensor that automatically rotates the display from portrait to landscape mode | |
| Touchscreen : | 4 wire Resistive touchscreen |
| Optional : |
Sunlight readable display 500Nits Digitizer |
|
|
|
|
COMMUNICATION |
|
|
Integrated WIFI LINK 5100 802.11a/b/g/n Integrated Bluetooth 2.1 + EDR |
|
| Optionnal communication : |
Integrated HSDPA 3G+ (Occupy slot Express Card / PCMCIA) Integrated GPS module |
|
|
|
|
INTERFACE |
|
| Expansion : | 1x Express Card 34 slot |
| SD card reader | |
| Option : | 1x PCMCIA/CardBUS Type II slot (replace Express Card 34) |
| I/O Ports : |
2x Audio jacks 2x USB Ports 1x RJ-45 port 10/100 |
| Optional integrated I/O ports : |
• 2 x USB + 1x COM RS232 • 1 x USB + 1x COM RS232 + 1 x RJ45 • 2 x COM RS232 |
|
|
|
|
POWER SUPPLY / BATTERY |
|
| Primary batteries : | Twin hot-swappable Lithium Polymer Battery Pack (7.4V, 2500mAh each) |
| Optional : | Double capacity batery |
| Other option : |
SFC Smart Fuel Cell battery – JENNY 600S * * Fuel cartridges with 350 ml of methanol allowing ‘‘unlimited’’ runtime designed for military applications |
| AC adapter : |
Input: 100V-240V, 50Hz-60Hz Output: 19V, 3.42A, 65W |
| Option : | Car adapter 12-32 VDC |
|
|
|
|
SPECIAL FEATURES |
|
| Stealth mode | |
| Security : |
TPM Trusted Platform Module 1.2 Administrator password Boot password Kensington Lock slot |
|
|
|
|
KEYPAD |
|
|
Power on/off button: press to suspend or power on/off. RF button: to turn on/off WLAN & Bluetooth Security button: equal to Ctrl + Alt + Del in Windows OS Five Direction Keysi?sfor Up/ Down/ Left/ Right/ press for Enter Function Keyi?sto be used with other keys Function + Direction Up : Volume up Function + Direction Down: Volume down Function + Direction Right : Brightness up Function + Direction Left : Brightness down |
|
|
|
|
|
STATUS INDICATOR |
|
|
Power status LED: Off: Power off/Hibernation Green: Power on Blinking Green: Standby/Sleep Battery status LED: (for each pack) Green: Battery is fully charged Orange: Battery is charging, Blinking Orange: Battery capacity is lower than 7% HDD status LED: Green: HDD is accessing Wireless ready LED: Blue: WLAN and/or Bluetooth are active All LED indicators will be off when in stealth mode |
|
|
|
|
|
OPTIONS & ACCESSORIES |
|
| Desktop Cradle : | 4x USB, RJ-45, 1 RS232, 1 DC-in, 2-Bay Battery Charger, VGA out port and external GPS antenna connection |
| Vehicle Mount | |
| MISSION BOX | Engineering ADD-in module featuring customer specific requirements made to order |
| Integrated options : |
• Integrated 1D/2D Intermec Bar Code Reader engine • Integrated RFID Scanner 13.56MHz ISO14443A & ISO 14443B & ISO15693 • Integrated GPS • Integrated 3G+ HSDPA module |
| Accessories : |
Mini-USB keyboard (External Wrist Wearable) Vehicle adapter Display protection film carry bag |
| Environmental Spécifications | STANDARDS/TESTS | Storage | Operating |
| Temperature : | MIL-STD-810G Methods 501.4, 502.4 |
-55°C (-67°F) to +75°C (167°F) with double battery capacity -50°C (-58°F) to +60°C (140°F) with standard battery |
-20°C (-4°F) to +60°C (140°F)with double capacity battery -20°C (-4°F) to +50°C (122°F) with standard battery |
| Thermal shock : | MIL-STD-810G Method 503.4 | 10°C(18°F)/min,-20°C(-4°F) to +50°C (122°F) | |
| Humidity : | MIL-STD-810G Method 507.4 | 95% @ 60°C (140°F) RH, non-condensing | |
| Dust protection | IP5x (dust) IEC 60529 /AC2:2007 | PASS | |
| Rain protection | IPx4 () IEC 60529 /AC2:2007 | PASS | |
| Drop : | MIL-STD-810G Method 516.5 Procedure VI | 122 cm (48 in)drop, concrete, each edge, face and corner | |
| Vibration : | MIL-STD-810G -514.5, Procedure I Cat. 24,Fig. 514.5C-17 & 514.5C-18 |
0.04 g2/Hz; 20 to 1000 Hz; -6 dB/octave 1000 to 2000 ASTM 4169-99 Truck Assurance Level II, Schedule |
|
| Salt Fog : | MIL-STD-810G Method 509.4 |
5% salt solution @ 35°C 48 hr wet, 48 hr dry |
| Environmental Spécifications | STANDARDS/TESTS | Storage | Operating |
| Temperature : | MIL-STD-810G Methods 501.4, 502.4 |
-55°C (-67°F) to +75°C (167°F) with double battery capacity -50°C (-58°F) to +60°C (140°F) with standard battery |
-20°C (-4°F) to +60°C (140°F)with double capacity battery -20°C (-4°F) to +50°C (122°F) with standard battery |
| Thermal shock : | MIL-STD-810G Method 503.4 | 10°C(18°F)/min,-20°C(-4°F) to +50°C (122°F) | |
| Humidity : | MIL-STD-810G Method 507.4 | 95% @ 60°C (140°F) RH, non-condensing | |
| Dust protection | IP5x (dust) IEC 60529 /AC2:2007 | PASS | |
| Rain protection | IPx4 () IEC 60529 /AC2:2007 | PASS | |
| Drop : | MIL-STD-810G Method 516.5 Procedure VI | 122 cm (48 in)drop, concrete, each edge, face and corner | |
| Vibration : | MIL-STD-810G -514.5, Procedure I Cat. 24,Fig. 514.5C-17 & 514.5C-18 |
0.04 g2/Hz; 20 to 1000 Hz; -6 dB/octave 1000 to 2000 ASTM 4169-99 Truck Assurance Level II, Schedule |
|
| Salt Fog : | MIL-STD-810G Method 509.4 |
5% salt solution @ 35°C 48 hr wet, 48 hr dry |
Description
TETRA IP54 Rugged UMPC Fieldbook
The TETRA IP54 Rugged UMPC Fieldbook is the latest of the next generation of rugged compact handheld
computers. It runs full Windows XP or 7 on a 1024 x 600 widescreen sunlight readable display. It’s twin Lithium Polymer battery packs are hot swappable for continuous operation. All ports are sealed or have rain and dust proof doors. TETRA IP54 Rugged UMPC Fieldbook is MIL-STD-810 and IP54 certified and has been drop tested to 1.2m (48inches). Equip with GPS, UXGA camera, optional 802.11 b/g/n, RFID scanner or barcode reader. The IP54 Rugged UPMC Fieldbook is perfect for field maintenance or logistics applications.
Features TETRA IP54 Rugged UMPC Fieldbook
• Collect Data with Barcode or RFID
• Transfer data in real-time
• Take geo-tagged photographs
• Receive dispatch orders on the road
• Map your networked assets or update their condition
• Send email
• Find your way out of nowhere
– Intel® Atom™ Z530 1.6GHz CPU, 2GB RAM
– XP Tablet/XP PRO embedded/Windows 7
– IP54, sealed I/O ports, -20°C operating
– 7” 1024×600 Sunlight Readable TFT LCD
– Fully rugged MIL-STD-810G, drop resistant from 1.2m (4 ft.)
– Twin hot-swappable lithium polymer battery packs
– Wireless connectivity, integrated GPS
Specifications TETRA IP54 Rugged UMPC Fieldbook
| PHYSICAL FEATURES | |
| Designation : | Fieldbook |
| Chassis construction : | Magnesium alloy |
| Dimension : |
22.5 (8.9”) W x 14.5 (5.7”) H x 4.2 cm (1.6”)D 23.5 (9.2”) W x 15.4 (5.9”) H x 5 cm (1.9”)D (including Bumpers) |
| Weight : | 1.3 KG (2.8lb) with two battery packs |
|
|
|
|
SYSTEM FUNCTIONALITY |
|
| Processor : | Intel® Atom™ Z530 1.6 GHz |
| FSB : | 533 Hz |
| RAM memory : | 2 GB DDRII 533 |
| Video controler : | Intel® Graphics Media Accelerator 500 (Intel® GMA 500) with 3D graphics |
| Audio : | 1x speaker 1.5W support Intel® HD Audio |
| Microphone : | Sensitive microphone array x2 integrated for voice recording and teleconferencing |
| Hard Disk Drive : | Rugged SATA 120 GB 1.8" with G-sensor |
| option : | Rugged SSD – 16 / 32 / 64 GB |
| Camera : | 2M-UXGA (1600 x 1200) auto-focus camera |
| Operating System : |
Windows XP Tablet Windows Vista Windows 7 |
|
|
|
|
DISPLAY |
|
| Description : | 7" TFT LCD WVGA SLR Display (1024 x 600) sunlight readable 300 NITS with touch screen panel, LED backlighting, support for stealth mode, Build-in ambient light sensor to adjust LCD brightness |
| Integrated G-sensor that automatically rotates the display from portrait to landscape mode | |
| Touchscreen : | 4 wire Resistive touchscreen |
| Optional : |
Sunlight readable display 500Nits Digitizer |
|
|
|
|
COMMUNICATION |
|
|
Integrated WIFI LINK 5100 802.11a/b/g/n Integrated Bluetooth 2.1 + EDR |
|
| Optionnal communication : |
Integrated HSDPA 3G+ (Occupy slot Express Card / PCMCIA) Integrated GPS module |
|
|
|
|
INTERFACE |
|
| Expansion : | 1x Express Card 34 slot |
| SD card reader | |
| Option : | 1x PCMCIA/CardBUS Type II slot (replace Express Card 34) |
| I/O Ports : |
2x Audio jacks 2x USB Ports 1x RJ-45 port 10/100 |
| Optional integrated I/O ports : |
• 2 x USB + 1x COM RS232 • 1 x USB + 1x COM RS232 + 1 x RJ45 • 2 x COM RS232 |
|
|
|
|
POWER SUPPLY / BATTERY |
|
| Primary batteries : | Twin hot-swappable Lithium Polymer Battery Pack (7.4V, 2500mAh each) |
| Optional : | Double capacity batery |
| Other option : |
SFC Smart Fuel Cell battery – JENNY 600S * * Fuel cartridges with 350 ml of methanol allowing ‘‘unlimited’’ runtime designed for military applications |
| AC adapter : |
Input: 100V-240V, 50Hz-60Hz Output: 19V, 3.42A, 65W |
| Option : | Car adapter 12-32 VDC |
|
|
|
|
SPECIAL FEATURES |
|
| Stealth mode | |
| Security : |
TPM Trusted Platform Module 1.2 Administrator password Boot password Kensington Lock slot |
|
|
|
|
KEYPAD |
|
|
Power on/off button: press to suspend or power on/off. RF button: to turn on/off WLAN & Bluetooth Security button: equal to Ctrl + Alt + Del in Windows OS Five Direction Keysi?sfor Up/ Down/ Left/ Right/ press for Enter Function Keyi?sto be used with other keys Function + Direction Up : Volume up Function + Direction Down: Volume down Function + Direction Right : Brightness up Function + Direction Left : Brightness down |
|
|
|
|
|
STATUS INDICATOR |
|
|
Power status LED: Off: Power off/Hibernation Green: Power on Blinking Green: Standby/Sleep Battery status LED: (for each pack) Green: Battery is fully charged Orange: Battery is charging, Blinking Orange: Battery capacity is lower than 7% HDD status LED: Green: HDD is accessing Wireless ready LED: Blue: WLAN and/or Bluetooth are active All LED indicators will be off when in stealth mode |
|
|
|
|
|
OPTIONS & ACCESSORIES |
|
| Desktop Cradle : | 4x USB, RJ-45, 1 RS232, 1 DC-in, 2-Bay Battery Charger, VGA out port and external GPS antenna connection |
| Vehicle Mount | |
| MISSION BOX | Engineering ADD-in module featuring customer specific requirements made to order |
| Integrated options : |
• Integrated 1D/2D Intermec Bar Code Reader engine • Integrated RFID Scanner 13.56MHz ISO14443A & ISO 14443B & ISO15693 • Integrated GPS • Integrated 3G+ HSDPA module |
| Accessories : |
Mini-USB keyboard (External Wrist Wearable) Vehicle adapter Display protection film carry bag |
| Environmental Spécifications | STANDARDS/TESTS | Storage | Operating |
| Temperature : | MIL-STD-810G Methods 501.4, 502.4 |
-55°C (-67°F) to +75°C (167°F) with double battery capacity -50°C (-58°F) to +60°C (140°F) with standard battery |
-20°C (-4°F) to +60°C (140°F)with double capacity battery -20°C (-4°F) to +50°C (122°F) with standard battery |
| Thermal shock : | MIL-STD-810G Method 503.4 | 10°C(18°F)/min,-20°C(-4°F) to +50°C (122°F) | |
| Humidity : | MIL-STD-810G Method 507.4 | 95% @ 60°C (140°F) RH, non-condensing | |
| Dust protection | IP5x (dust) IEC 60529 /AC2:2007 | PASS | |
| Rain protection | IPx4 () IEC 60529 /AC2:2007 | PASS | |
| Drop : | MIL-STD-810G Method 516.5 Procedure VI | 122 cm (48 in)drop, concrete, each edge, face and corner | |
| Vibration : | MIL-STD-810G -514.5, Procedure I Cat. 24,Fig. 514.5C-17 & 514.5C-18 |
0.04 g2/Hz; 20 to 1000 Hz; -6 dB/octave 1000 to 2000 ASTM 4169-99 Truck Assurance Level II, Schedule |
|
| Salt Fog : | MIL-STD-810G Method 509.4 |
5% salt solution @ 35°C 48 hr wet, 48 hr dry |
| Environmental Spécifications | STANDARDS/TESTS | Storage | Operating |
| Temperature : | MIL-STD-810G Methods 501.4, 502.4 |
-55°C (-67°F) to +75°C (167°F) with double battery capacity -50°C (-58°F) to +60°C (140°F) with standard battery |
-20°C (-4°F) to +60°C (140°F)with double capacity battery -20°C (-4°F) to +50°C (122°F) with standard battery |
| Thermal shock : | MIL-STD-810G Method 503.4 | 10°C(18°F)/min,-20°C(-4°F) to +50°C (122°F) | |
| Humidity : | MIL-STD-810G Method 507.4 | 95% @ 60°C (140°F) RH, non-condensing | |
| Dust protection | IP5x (dust) IEC 60529 /AC2:2007 | PASS | |
| Rain protection | IPx4 () IEC 60529 /AC2:2007 | PASS | |
| Drop : | MIL-STD-810G Method 516.5 Procedure VI | 122 cm (48 in)drop, concrete, each edge, face and corner | |
| Vibration : | MIL-STD-810G -514.5, Procedure I Cat. 24,Fig. 514.5C-17 & 514.5C-18 |
0.04 g2/Hz; 20 to 1000 Hz; -6 dB/octave 1000 to 2000 ASTM 4169-99 Truck Assurance Level II, Schedule |
|
| Salt Fog : | MIL-STD-810G Method 509.4 |
5% salt solution @ 35°C 48 hr wet, 48 hr dry |
