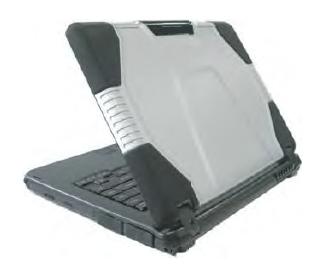

Rugged Notebook RNB Eagle

<p>
<span style="color: rgb(0, 0, 128);"><u><b>Description Rugged Notebook Eagle </b></u></span></p>
<p>
he perfect bridge between fully-rugged and semi-rugged, the Rugged NotebookRNB Eagle is a highly functional, lightweight notebook that breaks the mold. The Eagle notebook rugged notebook  was designed with military users in mind, featuring port covers, sunlight readable display, and tested to MIL-STD-810F, all with the computing performance of a semi-rugged notebook.</p>
<p>
The latest security features are built in, including fingerprint reader, SmartCard (CAC) reader, and Absolute Computrace™ enabled BIOS for asset tracking and theft/loss recovery (when LoJack™ for Laptops or Computrace™ is installed).<img align="right" alt="Image" hspace="6" src="https://www.comm-co.com/jm/images/Rugged/rnb_eagle_rugged_notebook_back.jpg&quot; /></p>
<ul>
<li>
14.1” WXGA or WXGA+<span style="white-space: pre;"> </span>LCD screen with optional touchscreen</li>
<li>
Intel® Core™ 2 Duo processor, up to 2.8GHz</li>
<li>
Up to 8GB RAM</li>
<li>
Drop/Shock/Spill protected — tested to MIL-STD-810F standards</li>
<li>
HDMI port</li>
<li>
Optional RAID 0/1 dual hard drive</li>
<li>
Optional Sunlight Readable Display</li>
<li>
Optional fully encrypted hard drive</li>
<li>
Optional 3G, GPS, Bluetooth and Webcam</li>
<li>
Windows 7 or XP Professional<br />
 </li>
</ul>
<table border="0" cellpadding="0" cellspacing="0" class="prodSpecs">
<tbody>
<tr class="prodSpecsHeader">
<td class="prodSpecsHeader" colspan="2" valign="top">
<h3>
 </h3>
<p>
<span style="color: rgb(0, 0, 128);"><u><b>Specifications Rugged Notebook  RNB Eagle </b></u></span></p>
</td>
</tr>
<tr class="prodSpecsOdd">
<td class="prodSpecsHead" width="25%">
<p>
<strong>CPU</strong></p>
</td>
<td class="prodSpecs" width="75%">
<ul>
<li>
Intel® Montevina Technology</li>
<li>
Intel® Pentium Dual Core 2.0GHz (T4200), FSB 800Mhz ,1MB L2 Cache, 35W TDP</li>
<li>
Optional: Intel® Core 2 Duo 2.10GHz (T6500) FSB 800Mhz, 2MB L2 Cache, 35W TDP</li>
<li>
Optional: Intel® Core 2 Duo 2.53GHz (P8700) FSB 1066Mhz, 3MB L2 Cache, 25W TDP</li>
<li>
Optional: Intel® Core 2 Duo 2.80GHz (T9600) FSB 1066Mhz, 6MB L2 Cache, 35W TDP</li>
</ul>
</td>
</tr>
<tr class="prodSpecsEven">
<td class="prodSpecsHead" width="25%">
<p>
<strong>L2 Cache</strong></p>
</td>
<td class="prodSpecs" width="75%">
<ul>
<li>
1-6MB, depending on CPU</li>
</ul>
</td>
</tr>
<tr class="prodSpecsOdd">
<td class="prodSpecsHead" width="25%">
<p>
<strong>Memory</strong></p>
</td>
<td class="prodSpecs" width="75%">
<ul>
<li>
2GB 800MHz DDR2 Standard</li>
<li>
8 GB Maximum (Microsoft XP Professional/Vista 32-Bit versions will see only 3.24GB)</li>
</ul>
</td>
</tr>
<tr class="prodSpecsEven">
<td class="prodSpecsHead" height="30" width="25%">
<p>
<strong>Chipset</strong></p>
</td>
<td class="prodSpecs" width="75%">
<ul>
<li>
North Bridge: Intel® GM45, optional Intel® GL40 (factory option)</li>
<li>
South Bridge: Intel® ICH9M</li>
<li>
Computrace Enabled BIOS for use with Lojack for Laptops Recovery or Absolute Computrace™</li>
</ul>
</td>
</tr>
<tr class="prodSpecsOdd">
<td class="prodSpecsHead" width="25%">
<p>
<strong>Video</strong></p>
</td>
<td class="prodSpecs" width="75%">
<ul>
<li>
Intel® GM45 Integrated Graphic Controller</li>
<li>
Shared System Memory up to 780MB</li>
</ul>
</td>
</tr>
<tr class="prodSpecsEven">
<td class="prodSpecsHead" width="25%">
<p>
<strong>Display</strong></p>
</td>
<td class="prodSpecs" width="75%">
<ul>
<li>
14.1" WXGA (1280×800)</li>
<li>
Optional: 14.1" WXGA+ (1440×900)</li>
<li>
Optional: resistive touch panel (Factory option, comes with Stylus and OS upgrade to touchscreen)</li>
<li>
Optional: sunlight readable display</li>
<li>
Optional 1.3 megapixel webcam</li>
</ul>
</td>
</tr>
<tr class="prodSpecsOdd">
<td class="prodSpecsHead" width="25%">
<p>
<strong>Hard Disk</strong></p>
</td>
<td class="prodSpecs" width="75%">
<ul>
<li>
Field Changeable/User removable 160GB HDD with SATA interface</li>
<li>
Optional: 500GB 5400rpm HDD</li>
<li>
Optional: 7200rpm HDD</li>
<li>
Optional: Extreme environment rugged hard drive</li>
<li>
Optional: Solid State Disk Drives (SSD) 16 / 32 / 64 / 128 / 256GB</li>
<li>
Optional: 160GB Hardward Encrypted High Security HDD</li>
<li>
Optional: Second HDD with RAID (Media Bay)</li>
</ul>
</td>
</tr>
<tr class="prodSpecsEven">
<td class="prodSpecsHead" width="25%">
<p>
<strong>Communication</strong></p>
</td>
<td class="prodSpecs" width="75%">
<ul>
<li>
Integrated 56 Kbps v.92 fax/modem</li>
<li>
Integrated Gigabit 1Gbps Ethernet (RJ45 connector)</li>
<li>
System supports Wake on LAN from S5/S4 on wired LAN connection on AC power</li>
</ul>
</td>
</tr>
<tr class="prodSpecsOdd">
<td class="prodSpecsHead" width="25%">
<p>
<strong>Wireless</strong></p>
</td>
<td class="prodSpecs" width="75%">
<ul>
<li>
Intel Link 5100 Mini Express Card Wireless LAN 802.11a/b/g/n</li>
<li>
Internal 2nd Mini PCI Express slot to support either WWAN/3G or WiMAX or GPS</li>
<li>
3G & WLAN cannot operate at the same time</li>
<li>
Optional: Bluetooth 2.1+EDR</li>
</ul>
</td>
</tr>
<tr class="prodSpecsEven">
<td class="prodSpecsHead" width="25%">
<p>
<strong>Media Bay</strong></p>
</td>
<td class="prodSpecs" width="75%">
<ul>
<li>
Field Changeable Side Opening Bay</li>
<li>
Super Multi DVDRW drive with bezel lock</li>
<li>
Optional: Second 2.5” SATA HDD (RAID)</li>
<li>
Optional: Weight Saver Blank</li>
</ul>
</td>
</tr>
<tr class="prodSpecsOdd">
<td class="prodSpecsHead" width="25%">
<p>
<strong>Expansion Slots</strong></p>
</td>
<td class="prodSpecs" width="75%">
<ul>
<li>
PCMCIA Type II slot</li>
<li>
4-in-1 Media Card Reader (SD / MMC / MS / MS Pro)</li>
</ul>
</td>
</tr>
<tr class="prodSpecsEven">
<td class="prodSpecsHead" width="25%">
<p>
<strong>I/O Devices</strong></p>
</td>
<td class="prodSpecs" width="75%">
<ul>
<li>
One PCMCIA Type II slot</li>
<li>
4 in 1 Media Card Reader (supports MS/MS Pro/SD/MMC)</li>
<li>
Smart Card Reader</li>
<li>
Touchpad</li>
<li>
Optional: 1.3 megapixel webcam</li>
</ul>
</td>
</tr>
<tr class="prodSpecsOdd">
<td class="prodSpecsHead" width="25%">
<p>
<strong>I/O Ports</strong></p>
</td>
<td class="prodSpecs" width="75%">
<ul>
<li>
1x RS-232 Serial</li>
<li>
1x PCMCIA Type II</li>
<li>
4x USB 2.0</li>
<li>
HDMI</li>
<li>
VGA</li>
<li>
RJ-45</li>
<li>
RJ-11</li>
<li>
4-1 MultiCard Reader</li>
<li>
Mic-In</li>
<li>
Line Out</li>
<li>
Docking Port</li>
</ul>
</td>
</tr>
<tr class="prodSpecsEven">
<td class="prodSpecsHead" width="25%">
<p>
<strong>AC/DC Adapter</strong></p>
</td>
<td class="prodSpecs" width="75%">
<ul>
<li>
Input: AC-100-240V 50/60Hz, Output:DC 20V/3.25A/65W</li>
</ul>
</td>
</tr>
<tr class="prodSpecsOdd">
<td class="prodSpecsHead" width="25%">
<p>
<strong>Audio</strong></p>
</td>
<td class="prodSpecs" width="75%">
<ul>
<li>
High Definition Audio/Stereo</li>
<li>
Two 1.5 speakers</li>
<li>
Internal Microphone</li>
</ul>
</td>
</tr>
<tr class="prodSpecsEven">
<td class="prodSpecsHead" width="25%">
<p>
<strong>Battery</strong></p>
</td>
<td class="prodSpecs" width="75%">
<ul>
<li>
Standard 6 cell 4400mAh Li-Ion battery (approx. 4hrs)</li>
<li>
Optional: 9 cell 6600mAh Li-Iobn battery (approx. 6hrs)</li>
</ul>
</td>
</tr>
<tr class="prodSpecsOdd">
<td class="prodSpecsHead" width="25%">
<p>
<strong>Operating System</strong></p>
</td>
<td class="prodSpecs" width="75%">
<ul>
<li>
Standard: Windows XP Pro (Windows 7 license with XP Pro downgrade)</li>
<li>
Optional: Windows Vista Business</li>
<li>
Optional: Windows Vista™ Ultimate</li>
<li>
Optional: Windows 7 Home Premium</li>
<li>
Optional: Windows 7 Professional (32 or 64 bit)</li>
<li>
Optional: Windows 7 Ultimate (32 or 64 bit)</li>
</ul>
</td>
</tr>
<tr class="prodSpecsEven">
<td class="prodSpecsHead" width="25%">
<p>
<strong>Dimensions / Weight</strong></p>
</td>
<td class="prodSpecs" width="75%">
<ul>
<li>
352mm (W) x 256mm (D) x 37-41 mm (H)/ 13.8" (W) x 10"(D) X 1.45" ~ 1.61"(H)</li>
<li>
2.5Kg/5.5lbs (with 6 cell battery)</li>
</ul>
</td>
</tr>
<tr class="prodSpecsOdd">
<td class="prodSpecsHead" width="25%">
<p>
<strong>Security</strong></p>
</td>
<td class="prodSpecs" width="75%">
<ul>
<li>
BIOS Administration password/ Boot password</li>
<li>
Smart Card Reader</li>
<li>
Fingerprint scanner</li>
<li>
Kensington Lock</li>
<li>
TPM 1.2</li>
</ul>
</td>
</tr>
<tr class="prodSpecsEven">
<td class="prodSpecsHead" width="25%">
<p>
<strong>Warranty</strong></p>
</td>
<td class="prodSpecs" width="75%">
<ul>
<li>
2 year standard warranty</li>
<li>
1 yr battery warranty (when purchased with laptop)</li>
<li>
Optional Express Service and Extended Warranty</li>
</ul>
</td>
</tr>
<tr class="prodSpecsOdd">
<td class="prodSpecsHead" width="25%">
<p>
<strong>Keyboard</strong></p>
</td>
<td class="prodSpecs" width="75%">
<ul>
<li>
Spill resistant keyboard with drain hole</li>
<li>
White LED projected keyboard light</li>
</ul>
</td>
</tr>
<tr class="prodSpecsSpecial">
<td class="prodSpecsHead" width="25%">
<p>
<strong>Special Upgrade Options</strong></p>
</td>
<td class="prodSpecs" width="75%">
<ul>
<li>
Sunlight Readable LCD with up to 1440×900 resolution</li>
<li>
Internal 3G module</li>
<li>
Encrypted Hard Drive</li>
<li>
Extreme environment rugged hard drive</li>
<li>
Solid State Drive up to 512GB</li>
<li>
48 Hour Express Red Repair Warranty with no cost overnight shipping</li>
<li>
Antireflective/antiglare screen protector film (enhances outdoor viewability, can be used on touchscreen and non-touchscreen models)</li>
<li>
BIOS-enabled Absolute Computrace asset tracking and recovery</li>
<li>
<</li>
</ul>
</td>
</tr>
<tr class="prodSpecsHeader">
<td class="prodSpecsHeader" colspan="2">
<h2>
<span style="font-size: x-small;"><span style="color: rgb(0, 0, 128);"><u><b>Enviromental Specs Rugged Notebook RNB Eagle </b></u></span></span></h2>
</td>
</tr>
<tr class="prodSpecsOdd">
<td class="prodSpecsHead" width="25%">
<p>
<strong>Temperature</strong></p>
</td>
<td class="prodSpecs" width="75%">
<ul>
<li>
Operating Environment Temperaturei?s 5a?? to 35a??</li>
<li>
Storage Environment Temperaturei?s -20a?? to 60a??</li>
<li>
Surface temperature (max): 20 deg C on Magnesium-alloy D cover; 15 deg C on palm rest and touch pad at 25 degree C ambient.</li>
</ul>
</td>
</tr>
<tr class="prodSpecsEven">
<td class="prodSpecsHead" width="25%">
<p>
<strong>Humidity</strong></p>
</td>
<td class="prodSpecs" width="75%">
<ul>
<li>
Operating Humidityi?s 10% to 90%</li>
</ul>
</td>
</tr>
<tr class="prodSpecsOdd">
<td class="prodSpecsHead" width="25%">
<p>
<strong>Drop</strong></p>
</td>
<td class="prodSpecs" width="75%">
<ul>
<li>
Meet 2.5 feet with 26 drops to 2” of plywood over concrete with unit off and display closed.</li>
<li>
MIL-STD-810F, Method 516.4, Procedure IV, Height Modified.</li>
</ul>
</td>
</tr>
<tr class="prodSpecsEven">
<td class="prodSpecsHead" width="25%">
<p>
<strong>Ingress Protection</strong></p>
</td>
<td class="prodSpecs" width="75%">
<ul>
<li>
C-face (keyboard and display) is spill proof, including keyboard, buttons and indicators</li>
<li>
Vented case with fan</li>
</ul>
</td>
</tr>
<tr class="prodSpecsOdd">
<td class="prodSpecsHead" width="25%">
<p>
<strong>Regulation</strong></p>
</td>
<td class="prodSpecs" width="75%">
<p>
EPEAT Silver, Energy Star 5.0, RoHS Compliance</p>
</td>
</tr>
</tbody>
</table>
<p>
 </p>
<p>
/p></p>
